▷HarshCam: Overcoming the Limits of SONY FCB Camera Blocks
Sony FCB zoom camera blocks are widely regarded as the best‑in‑class imaging solutions for defense, surveillance, and industrial systems. However, like most commercial camera modules, standard FCB units are susceptible to performance degradation or failure when exposed to sustained vibration, mechanical shock, or extreme temperatures.
HarshCam eliminates these limitations.
Through internal mechanical adaptation, HarshCam transforms a standard Sony FCB block into a ruggedized, field‑ready camera module. All modifications are fully internal and invisible to both integrators and end users. Electrical interfaces, connectivity, and control protocols remain 100% compatible with original Sony specifications.
ENGINEERED FOR THE EXTREME
Built for Defense and Tactical Applications
Engineered for stable, reliable imaging in the harshest operational environments, HarshCam is rigorously tested and qualified to key MIL-STD-810 environmental standards, including:
Method 514 – Vibration
Method 516 – Mechanical Shock
Method 501.4 – Hi‑Temp (Procedure I, A1)
Method 502.4 – Low-Temp (Procedure I, C1)
Purpose-built for defense and tactical deployments, HarshCam withstands mechanical shocks exceeding 40 G for durations over 11 milliseconds, as well as extreme operating temperatures from -35 °C to +71 °C. This exceptional durability ensures dependable performance in high-impact missions, whether integrated into armored vehicles, UAVs, or mobile surveillance platforms.
HarshCam is also a cost-effective, drop-in replacement for SONY block zoom cameras, specifically engineered to meet the demands of military-grade applications.
Rock-Solid Zoom & Focus
— Zero drift, no reboot or recalibration required
Extreme Impact Resistance
— Endures 40G+ shocks lasting over 11 milliseconds
Extended Operating Temperature
— Reliable performance from −35 °C to +71 °C
Looking for more information?
Designed for harsh environments
BUILT FOR EXTREME CONDITIONS
Purpose-engineered to withstand severe shock and vibration while delivering reliable, high-performance imaging, also under extreme environmental conditions.
UNMATCHED MISSION RELIABILITY
Maintains flawless zoom and focus under punishing conditions where failure is not an option.
SEAMLESS DEFENSE INTEGRATION
A next-generation, drop-in solution for system integrators requiring rapid deployment and operational confidence.
The HarshCam Difference
When the mission demands clarity under pressure, HarshCam delivers. Built to endure, engineered to perform.
Land, Sea, and Sky — HarshCam Powers Mission-Critical Vision Systems
HarshCam is a ruggedized camera module engineered for operation in the world’s most demanding environments, where performance, durability, and continuity are non-negotiable. Trusted by leading defense and security integrators worldwide.
Developed by Iberoptics, HarshCam reflects engineering expertise in advanced electro-optical systems. Iberoptics’ engineering teams work in close collaboration with customers to meet evolving operational requirements, extending capabilities beyond the standard product range.
This customer-driven approach ensures each HarshCam solution delivers reliable performance under extreme shock, vibration, and temperature conditions, making it a dependable foundation for vision systems that must perform without fail—on land, at sea, and in the air.
Engineered for Defense and Security Systems Integrators
-
Remote Weapon Stations (RWS) and Turret Manufacturers: Robust cameras are critical for targeting and situational awareness.
-
Surveillance and Reconnaissance System Integrators for tanks, armored personnel carriers (APCs), and tactical ground vehicles.
-
360° Vision System Developers: Enhancing crew situational awareness in confined or armored environments.
-
Unmanned Ground Vehicles (UGVs) and EOD Robots: Requires shock-proof, vibration-resistant optics for remote navigation and threat assessment.
-
UAV and Helicopter Surveillance Systems: Manufacturers of airborne targeting pods and ISR platforms.
-
EO/IR Payload Developers: HarshCam integrates easily into electro-optical/infrared sensor suites for airborne reconnaissance.
DORI Performance: Precision Vision with HarshCam
The HarshCam 9520 and 9500 series are purpose-built for mission-critical surveillance and inspection in the most demanding environments. Powered by Sony’s advanced imaging blocks—FCV-EV9520L, FCB-EV9500L, FCB-EW9500H, and FCB-ER9500—these systems deliver exceptional image quality and reliability.
Engineered to excel across the full DORI spectrum—Detection, Observation, Recognition, and Identification—HarshCam ensures decisive visual intelligence, providing clarity, accuracy, and confidence in every frame.
What is DORI?
DORI defines the effective range at which a camera can:
-
Detect a subject (movement or presence)
-
Observe general activity
-
Recognize a person or object
-
Identify specific individuals or details
SONY FCB-EV9520L
HarshCam 9520L and HarshCam-9520L(±)
– Sensor: 1/2.8” STARVIS 2 CMOS, Full HD (1080p60)
– Optical Zoom: 30x / Digital Zoom 12x
– Horizontal Field of View: 63.7” (wide) to 2.3” (telephoto)
– Minimum Illumination: 0.009 lx (ICR-OFF, High Sensitivity Mode)
SONY FCB-EV9500L
HarshCam 9500L and HarshCam-9500L(±)
– Sensor: 1/1.8” STARVIS CMOS, 4K UHD (2160p30)
– Optical Zoom: 30×/ Digital Zoom: 12×
– Horizontal Field of View: 58.1” (wide) to 2.3” (telephoto)
– Minimum Illumination: 0.02 lx (ICR-OFF, High Sensitivity Mode)
SONY FCB-EW9500H
HarshCam 9500H and HarshCam-9500H(±)
– Sensor: 1/1.8” STARVIS™ CMOS, approx. 4.17 M pixels
– Optical Zoom: 30× Enhanced Optical Zoom / Digital Zoom: 12×
– Horizontal Field of View: 58.1” (wide) to 2.3” (telephoto)
– Minimum Illumination: 0.009 lx (ICR-OFF, High Sensitivity Mode)
SONY FCB-ER9500
HarshCam ER9500 and HarshCam-ER9500(±)
– Sensor: 1/1.8” STARVIS™2 CMOS, approx. 8.4 MP (4K)
– Optical Zoom: 25× / Digital Zoom:12×
– Horizontal Field of View: 59” (wide) to 2.8” (telephoto)
– Minimum Illumination: 0.028 lx (ICR-OFF, High Sensitivity Mode)
Deployed in several NATO-aligned programs, HarshCam systems are trusted by customers in 27 countries. Data obtained according to tests carried out by Iberoptics.

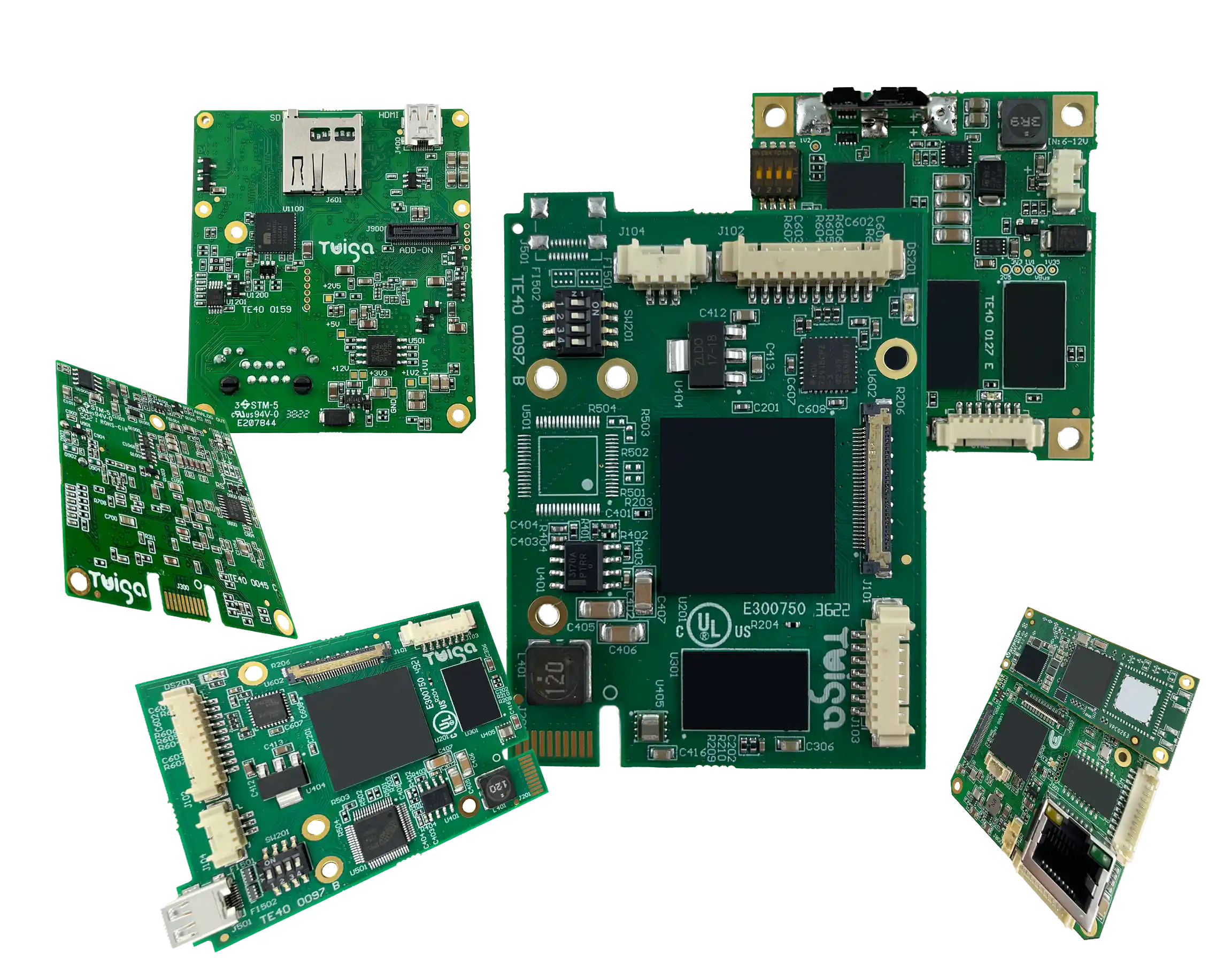

▷Advanced Interface Boards for SONY Blocks & HarshCam
Mission-Critical Performance, Frame by Frame
When split-second decisions rely on crystal-clear visuals, our precision video interface boards deliver. Engineered for ultra-low latency, Twiga boards seamlessly capture, process, and transmit video across IP, SDI, USB, HDMI, and Analog formats—with the stability and speed required in operational environments.
Perfect for SONY. Optimized for HarshCam.
Twiga interface boards are the natural companion to SONY FCB blocks and the ideal core of every HarshCam system. Whether you’re deploying a vehicle-mounted turret, a naval surveillance pod, or a UGV sensor suite, our interfaces ensure flawless integration with both modern and legacy command architectures.
Custom-Built, Tactical Flexibility
No two systems—or missions—are alike. That’s why Twiga designs and manufactures custom video interface boards tailored to your operational constraints, space limitations, and signal chain requirements. We engineer the exact fit—mechanically, electrically, and functionally.

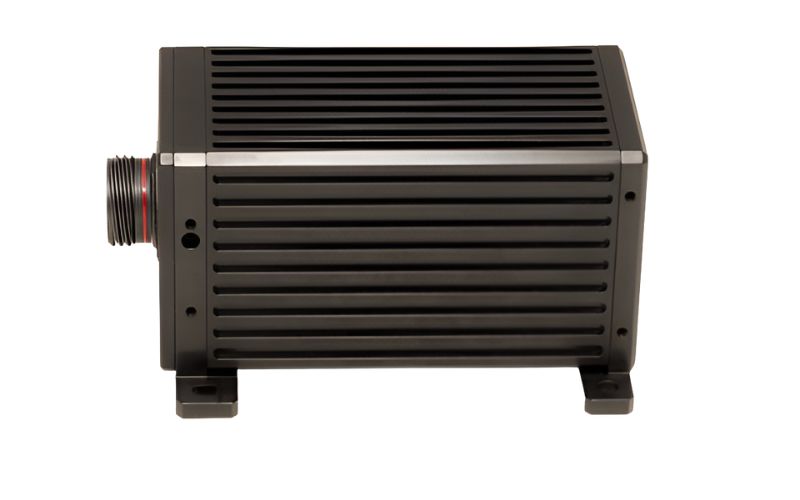

CamShell
Engineered for Extreme Environments
Built around the Sony FCB-EV9520L block, CamShell is fully compatible with HarshCam-9520L and HarshCam-9520L (±). Its field-proven enclosure is engineered to deliver the reliability, image quality, and environmental resilience demanded by defense and security operations.
CamShell is more than a protective housing—it is a mission-critical shield against environmental stressors. Designed to meet and exceed military-grade requirements, it provides uncompromising protection in the harshest operational conditions.
Military-grade connector with selectable analog (NTSC/PAL) and digital (HD-SDI) video output.
▷Built to Withstand the Elements
-
Sealed & Nitrogen-Purged—Prevents internal condensation
-
Extreme Temperature Range — Operates from -35 C to +75 C
-
Humidity Tolerant—Handles 20% to 70% operating humidity
-
Rugged Housing—Anodized and painted aluminum shell
-
Military-Grade Connector—Reliable and secure interface
-
3G HD-SDI Video Output—High-quality, low-latency transmission
-
Wide Power Range—12–36 VDC with reverse polarity protection
-
MIL-STD-810 Compliant — Built for shock, vibration, and environmental extremes
-
Standard or Ruggedized Versions — Withstands above 40g for 1lms
As an authorized distributor, we provide original SONY modules, technical support, and integration expertise. Whether as standalone vision components or as part of a ruggedized HarshCam system, SONY FCB blocks are the smart choice for defense and industrial-grade imaging.
▷ORIGINAL SONY
Zoom Camera Blocks for Precision Imaging in Defense and Security
Sony FCB zoom camera blocks are trusted worldwide for their proven reliability, high-performance optics, and flexible system integration in mission-critical defense and security environments. Engineered for demanding ground, aerial, and maritime operations, Sony’s latest FCB series delivers advanced imaging capabilities, including:
• High-resolution video output up to 4K/60p (model-dependent), providing smooth, highly detailed imagery for inspection, surveillance, and long-range observation.
• Optical zoom performance up to 30×, depending on model, enabling clear identification of distant targets without digital degradation.
• Wide Dynamic Range (WDR) for maintaining image clarity in challenging high-contrast lighting conditions.
• Advanced image stabilization, including Sony’s Super Image Stabilizer technology on supported models, ensuring stable imaging on mobile or vibration-prone platforms.
• Exceptional low-light sensitivity, utilizing Sony STARVIS™ or STARVIS™ 2 CMOS sensor technology (model-dependent), enabling reliable imaging from bright daylight to near-darkness conditions.
With their combination of high-resolution sensors, precision optics, and professional-grade image processing, Sony FCB camera blocks are ideally suited for long-range surveillance, targeting support, border and perimeter monitoring, UAV and UGV payloads, maritime navigation, and enhanced situational awareness across defense and security missions.
Resolution | Compact Size | Optical Zoom | Imagen Stabilization | Sensor | Wide Dynamic Range

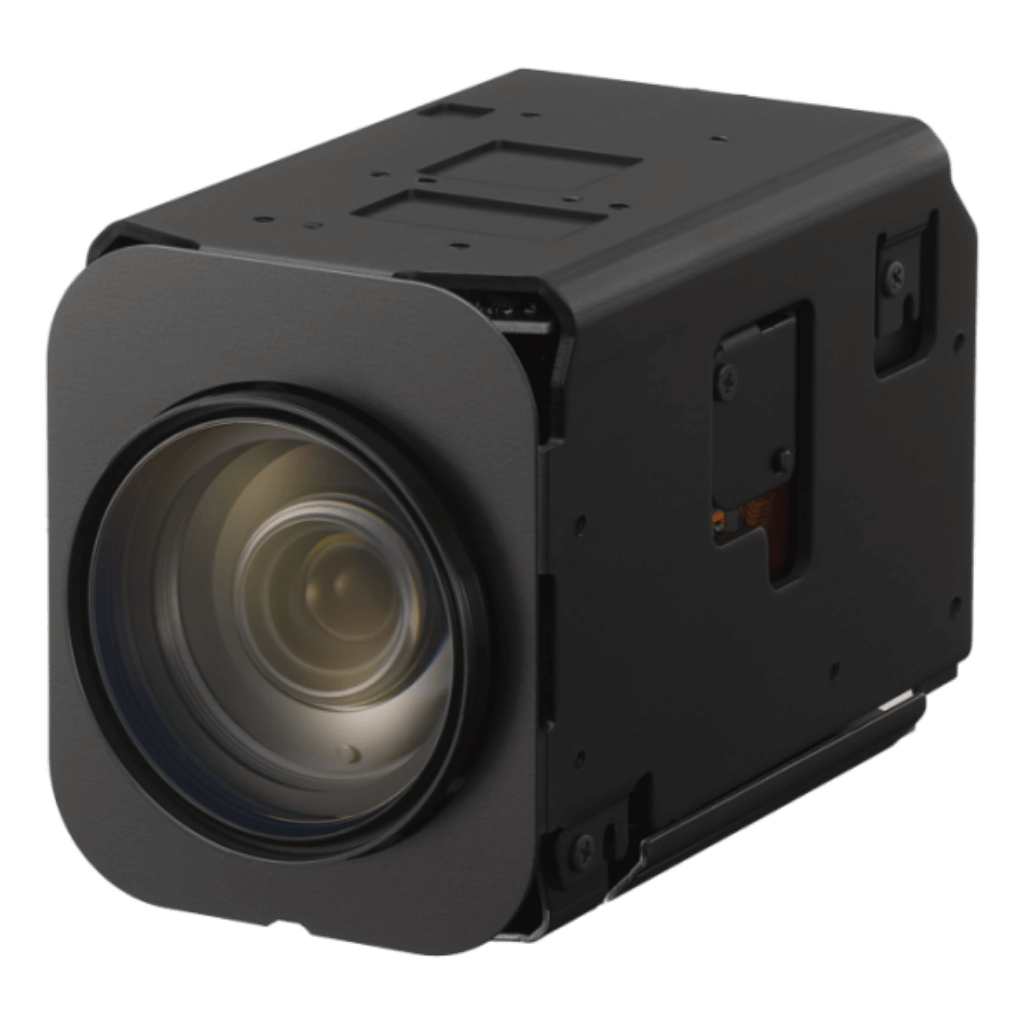

FCB-EV9520L
FHD 1/3″ FCB Block with new Starvis generation (LVDS)
As the advanced successor to the FCB-EV7520/A, the FCB-EV9520L is engineered for high-performance applications in surveillance, defense, and other mission-critical markets where precision, reliability, and image clarity are essential.
Pivotal to its operation is the unique cell structure utilised. In order to boost sensitivity, the photodiode layer in each cell has been made much deeper than in conventional arrangements.
Ruggedized version HarshCam‑9520L and HarshCam‑9520L (±)
Resolution | Compact Size | Optical Zoom | Imagen Stabilization | Sensor Digital Zoom

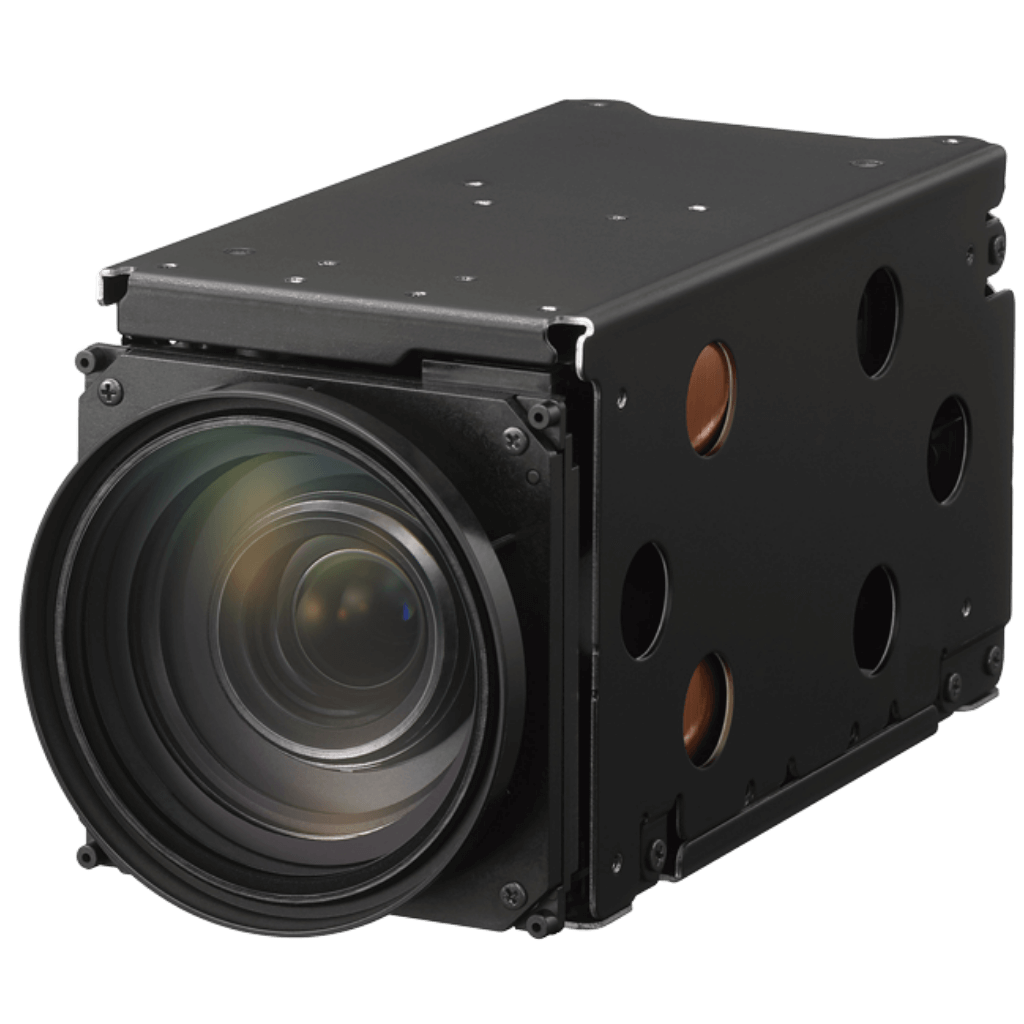

FCB-EV9500L
FHD 1/3″ FCB Block with new Starvis generation (LVDS).
As the advanced successor to the FCB-EV7520/A, the FCB-EV9520L is engineered for high-performance applications in surveillance, defense, and other mission-critical markets where precision, reliability, and image clarity are essential.
Pivotal to its operation is the unique cell structure utilised. In order to boost sensitivity, the photodiode layer in each cell has been made much deeper than in conventional arrangements.
Ruggedized version HarshCam 9500L and HarshCam-9500L(±)
Resolution | Compact Size | Optical Zoom | Imagen Stabilization | External Synchronization | Sensor Digital Zoom

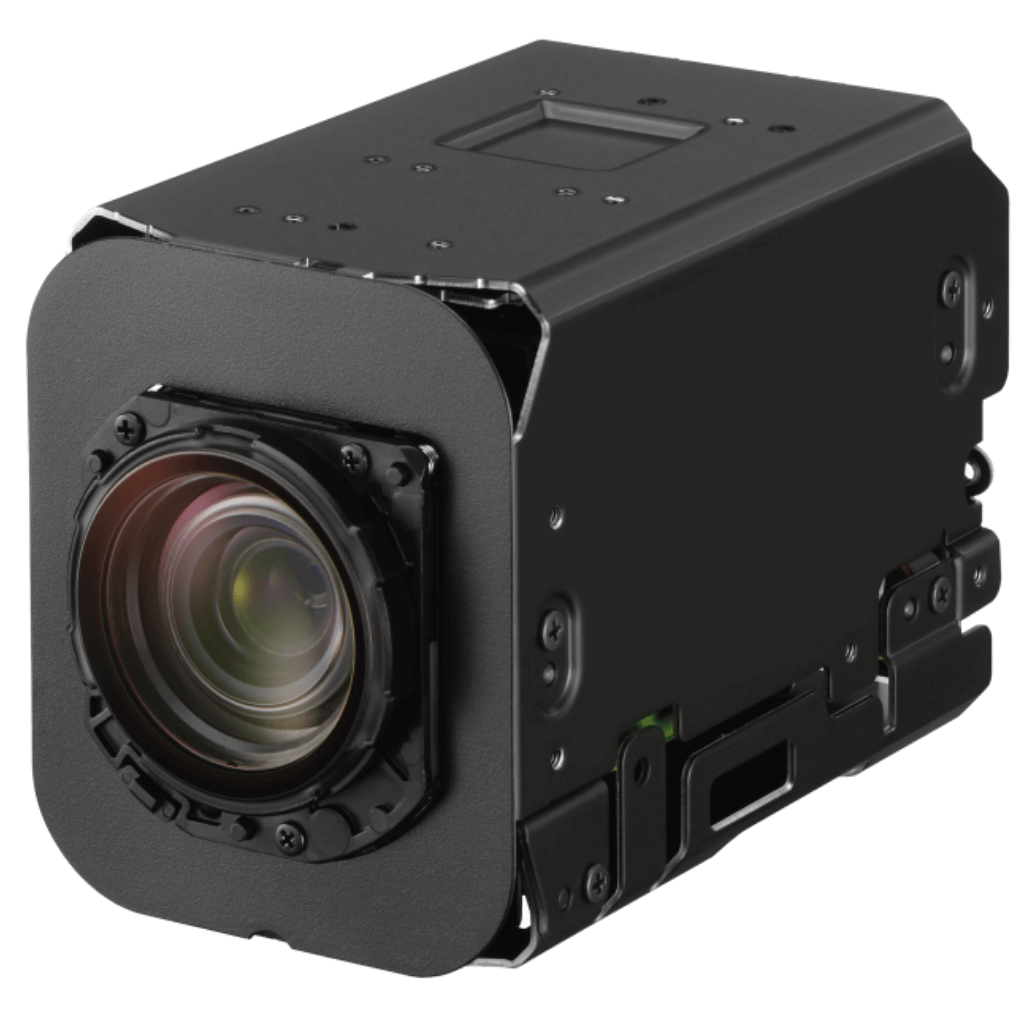

FCB-ER8550
Tactical 4K Imaging, Synchronized
The SONY FCB-ER8550 is a high-performance 4K block camera engineered for mission-critical defense applications.
With External Synchronization, it enables precise multi-camera coordination—ideal for perimeter surveillance, targeting systems, and vehicle-mounted operations. Its compact design, 20x zoom, and low-light capability ensure reliable situational awareness in dynamic environments.
Resolution | VISCA Comands | Optical Zoom | Imagen Stabilization
HDMI | Digital Zoom

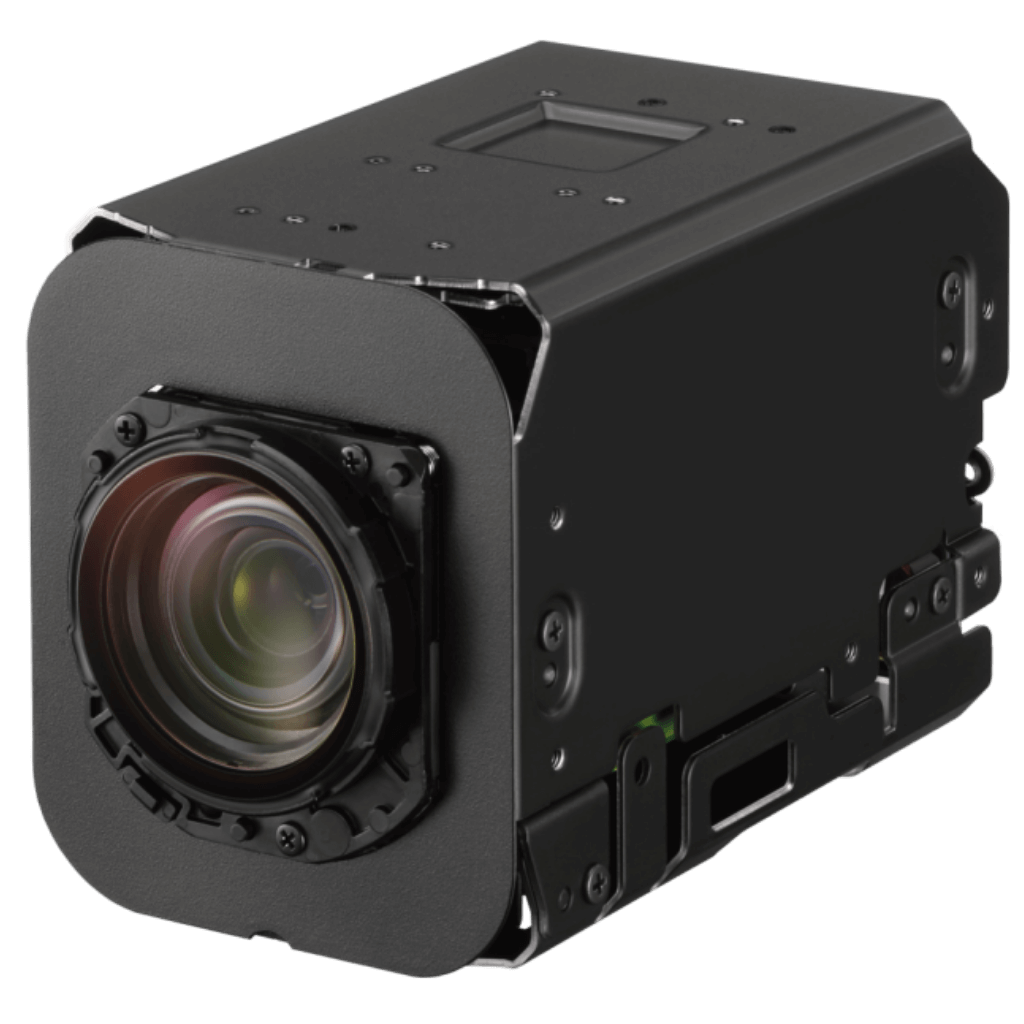

FCB-ER8530
Compact 4K Vision for Tactical Systems
The SONY FCB-ER8530 delivers sharp 4K imaging with a 20x optical zoom in a rugged, compact form—ideal for defense platforms where space and precision matter. With advanced features like image stabilization, low-light performance, and Super Resolution Zoom, it ensures reliable visual intelligence in mobile, airborne, and perimeter surveillance systems.
Interchangeable with legacy FCB-EV units, the ER8530 simplifies upgrades without redesign. Available soon at HarshCam.
Resolution | Energy Consumption | Optical Zoom | Imagen Stabilization | HDMI | Digital Zoom

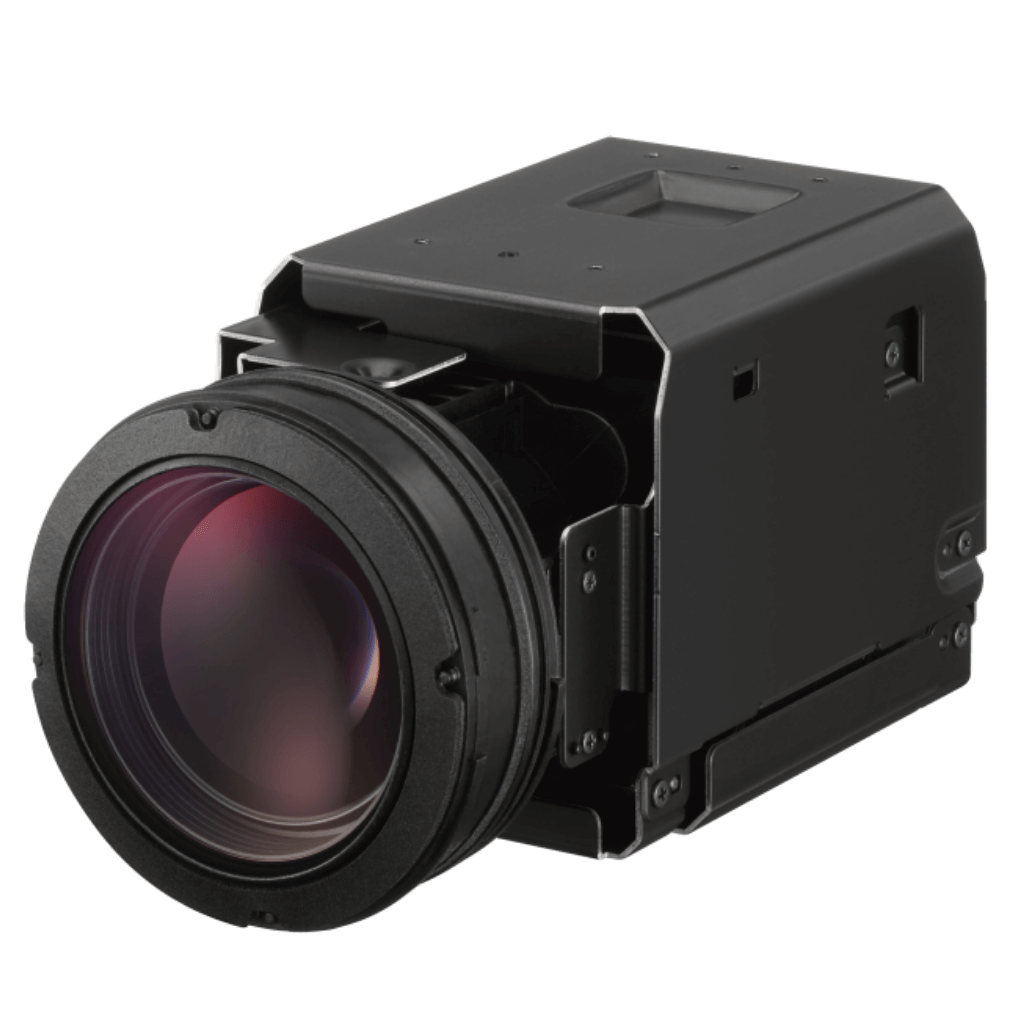

FCB-ES8230
SONY FCB-ES8230 – Stabilized 4K Imaging
The SONY FCB-ES8230 combines 4K clarity with a 12x optical zoom and optical image stabilization, making it ideal for mobile and vibration-prone defense systems. With External Synchronization, VISCA control, and low-light performance, it supports precise, coordinated surveillance and targeting in dynamic environments.
Built for integration into UAVs, armored vehicles, and perimeter defense.
Resolution | Speed: 60 fps | Optical Zoom | Imagen Stabilization| Sensor | HDMI

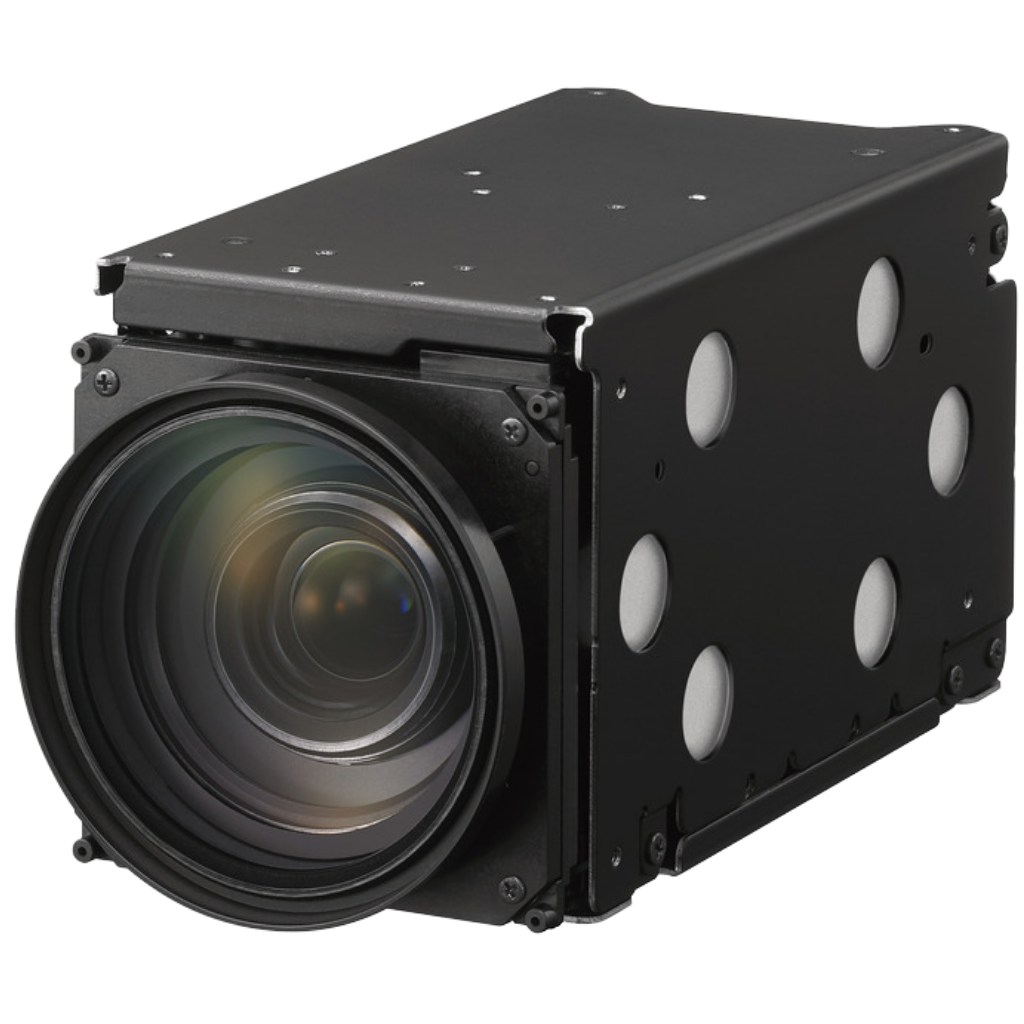

FCB-ER9500
SONY FCB-ER9500 – Precision in Every Pixel
Engineered with Sony’s advanced STARVIS2 4K image sensor, this camera delivers ultra-clear 4K60P video output, ensuring exceptional detail and clarity in every frame.
Equipped with a powerful 25x optical zoom lens, the FCB-ER9500 enables smooth and natural transitions from wide-angle views to long-distance close-ups—ideal for demanding applications such as inspection, surveillance, robotics, and remote monitoring.
Ruggedized version HarshCam-ER9500 and HarshCam-ER9500(±)
Resolution | Compact Size | Optical Zoom | Imagen Stabilization | Sensor | Digital Zoom
FCB-EW9500H
SONY FCB-EW9500H high-performance Full HD
Equipped with a powerful 30x optical zoom and advanced image stabilization, it delivers crisp, clear visuals even in challenging environments. Its low-light sensitivity and wide dynamic range ensure reliable performance in varied lighting conditions, while the compact form factor makes it ideal for integration into custom systems.
With support for VISCA protocols and flexible output options, the FCB-EW9500H is a trusted choice for precision imaging in harsh scenarios.
Ruggedized version HarshCam-9500H and HarshCam-9500H(±)

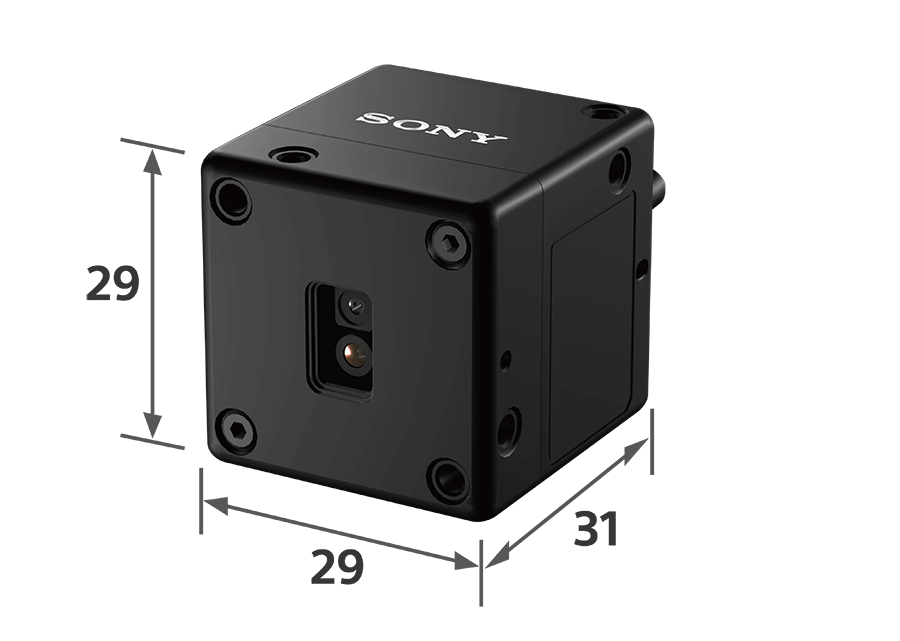

The AS-DT1 is a miniature LiDAR depth sensor from Sony Image Sensing Solutions that delivers high-accuracy 3D distance measurements in a compact, lightweight form factor. It uses advanced Direct Time-of-Flight (dToF) technology with a Single Photon Avalanche Diode (SPAD) module to precisely measure distance, width, and depth even on low-reflectivity and low-contrast surfaces — outperforming many conventional ranging methods.
Ideal for: drones, autonomous mobile robots, warehouse automation, inspection systems, and service robots.
▷Sony AS‑DT1 LiDAR Depth Sensor – Compact Power for Precision
World’s smallest and lightest miniature precision LiDAR Depth Sensor
The Sony AS‑DT1 is one of the world’s smallest and lightest precision LiDAR depth sensors, measuring just 29 × 29 × 31 mm and weighing only 50 g, making it perfect for drones, mobile robots, and compact embedded systems.
Powered by advanced Direct Time‑of‑Flight (dToF) technology and a SPAD sensor, it delivers fast and accurate 3D depth measurements with 576 ranging points at up to 30 fps.
The AS‑DT1 achieves impressive performance with a range of up to 40 m indoors and 20 m outdoors, even in bright sunlight, maintaining high accuracy and reliability across challenging environments.
Designed with a rugged aluminum housing and versatile connectivity—including dual USB‑C, UART, and trigger input—it integrates seamlessly into next‑generation robotic and autonomous systems.
FUJINON SX Series: Tactical Long-Range Imaging
HarshCam proudly presents the FUJINON SX Series—advanced long-range camera systems engineered by FUJIFILM to meet the rigorous demands of defense, border security, and military surveillance.
The SX800 and SX1600 models deliver precision optics, rapid response capabilities, and robust performance in hostile environments, making them indispensable tools for mission-critical operations.
FUJIFILM SX800
Compact Surveillance Long Range Multi-Purpose Camera
The SX800 combines a high-resolution sensor with a 40x optical zoom lens (20–800mm), enabling operators to identify and track targets at extended distances with exceptional clarity.
Its ultra-low-light performance (down to 0.00015 lux), rapid autofocus, and dual stabilization system ensure reliable imaging in low-visibility and high-vibration scenarios—ideal for perimeter defense, convoy monitoring, and tactical reconnaissance.
FUJIFILM SX1600
Extended Telephoto for Strategic Observation
Designed for long-range threat detection and situational awareness, the SX1600 features a 40–1600mm optical zoom lens, extendable to 3200mm with digital zoom.
This model excels in identifying distant objects such as vehicles, personnel, or infrastructure across vast terrain. With advanced image stabilization, fog and heat haze reduction, and near-instant autofocus, the SX1600 supports operations in complex environments including border zones, coastal surveillance, and high-altitude observation posts.
▷Mission-Ready Versatility
Both models are built with an integrated lens-camera architecture, simplifying deployment and reducing maintenance. Their rugged design and intuitive controls make them suitable for fixed installations, mobile platforms, and rapid deployment units. Whether used for intelligence gathering, force protection, or strategic asset monitoring, the SX Series enhances operational effectiveness across land, sea, and air domains.
Fuji SX1600 optical 40x zoom, the world’s longest 1600mm telephoto
▷ The FUJIFILM SX1600
Uses advanced image processing to reduce visual distortion caused by heat haze, fog, and airborne particles. Its built-in «black glass» visible cut filter enables near-infrared imaging, helping capture clearer images even in harsh atmospheric conditions.
Boresight Retention Technology
When zooming in, even slight misalignment between the image sensor and the lens’s optical axis can cause the camera to lose sight of the target—especially in long-range surveillance or precision monitoring applications.
Fujifilm’s SX Series addresses this challenge with advanced boresight correction technology. By minimizing the gap between the sensor and the lens’s optical center, the system maintains consistent alignment throughout the zoom range.
Unlike conventional systems that often drift off-target during zoom operations, Fujifilm’s precision engineering ensures the subject stays centered—delivering reliable, high-accuracy imaging even under harsh conditions.
▷ From Mission-Critical Vision to Specialized Integration
At HarshCam, we do more than deliver rugged cameras — we develop complete, field-ready vision solutions tailored to the most demanding defense, security, and industrial applications. Our project work combines engineering precision, advanced optics, and real-world operational insight to create systems that thrive where conditions are harshest.
Each project is a collaboration: from initial requirement analysis and proof-of-concept, through prototyping, testing, and final deployment. Whether enabling autonomous navigation in military vehicles, providing 360° situational awareness, or delivering ultra-precise stereo vision for inspection and targeting, our systems are designed for performance without compromise.
The IHC-HDCL
Total Situational Awareness in Real Time
HarshCam’s advanced 360° vision systems are designed to deliver comprehensive, real-time situational awareness for armored vehicles operating in complex and high-risk environments. Whether navigating urban terrain, monitoring perimeter threats, or supporting tactical operations, our systems provide crews with a seamless, high-resolution bird’s-eye view of their surroundings.
Crew safety by identifying potential threats before they escalate
Combat effectiveness through real-time visual intelligence
Vehicle maneuverability in tight or obstructed environments
360-Degree Vision in Military Applications
360-degree vision is a critical component in defense and military operations, particularly for armored vehicles. It significantly improves situational awareness, safety, and operational effectiveness in combat environments by providing a comprehensive view of the surroundings.
Enhanced Situational Awareness
With access to a full panoramic perspective, personnel can detect threats from every direction, including those concealed by obstacles or hidden in blind spots. This capability ensures that military teams are constantly informed of their environment, increasing their ability to identify and respond to potential dangers.
Possible ways to integrate the IHC-HDCL16C-X.X camera for achieving 360-degree vehicle vision with a 1/2 aspect ratio.
▷Integration with other technologies
360-degree vision systems are designed to work in tandem with technologies such as AI-based threat detection, augmented reality displays, and advanced communication systems. This integration further enhances the effectiveness and versatility of military equipment.
For instance, helmet-mounted radar systems can provide the ability to see through walls and obstacles, while vision technologies integrated into moving armored vehicles enable a real-time, all-encompassing view. These advancements apply to both ground and air operations, extending their benefits to soldiers and pilots alike.
Full-Spectrum Vision for the Modern Battlefield
The IHC-HDCL16C-X.X is built around the Sony XCL-CG160/C global shutter CMOS camera, powered by the IMX273 1/2.9″ GS (Pregius) sensor. This advanced imaging core delivers exceptional reliability, high sensitivity, and fast frame rates—key advantages for mission-critical surveillance and defense operations.
Featuring a Camera Link v2.0 interface, the IHC-HDCL16C-X.X is available in two configurations:
3.6 mm focal length – Offers a more focused FOV of 73° horizontal × 41:1° vertical, suitable for detailed observation and target tracking.
1.8 mm focal length – Delivers an ultra-wide field of view (FOV) of 143° horizontal × 78° vertical, ideal for panoramic surveillance.
Both models are engineered to provide sharp, low-latency imagery in demanding environments, making them ideal components for HarshCam’s 360-degree vision systems.

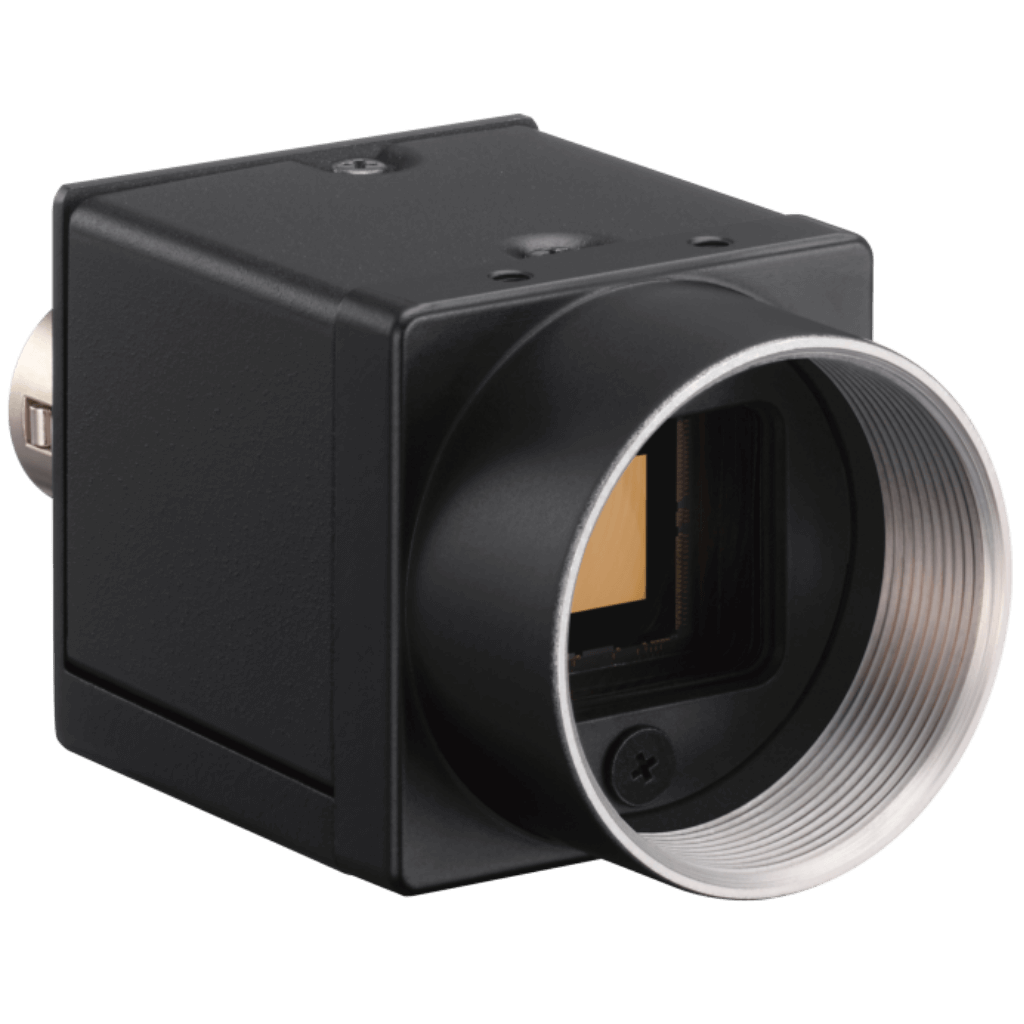

SONY XCL-CG160/C

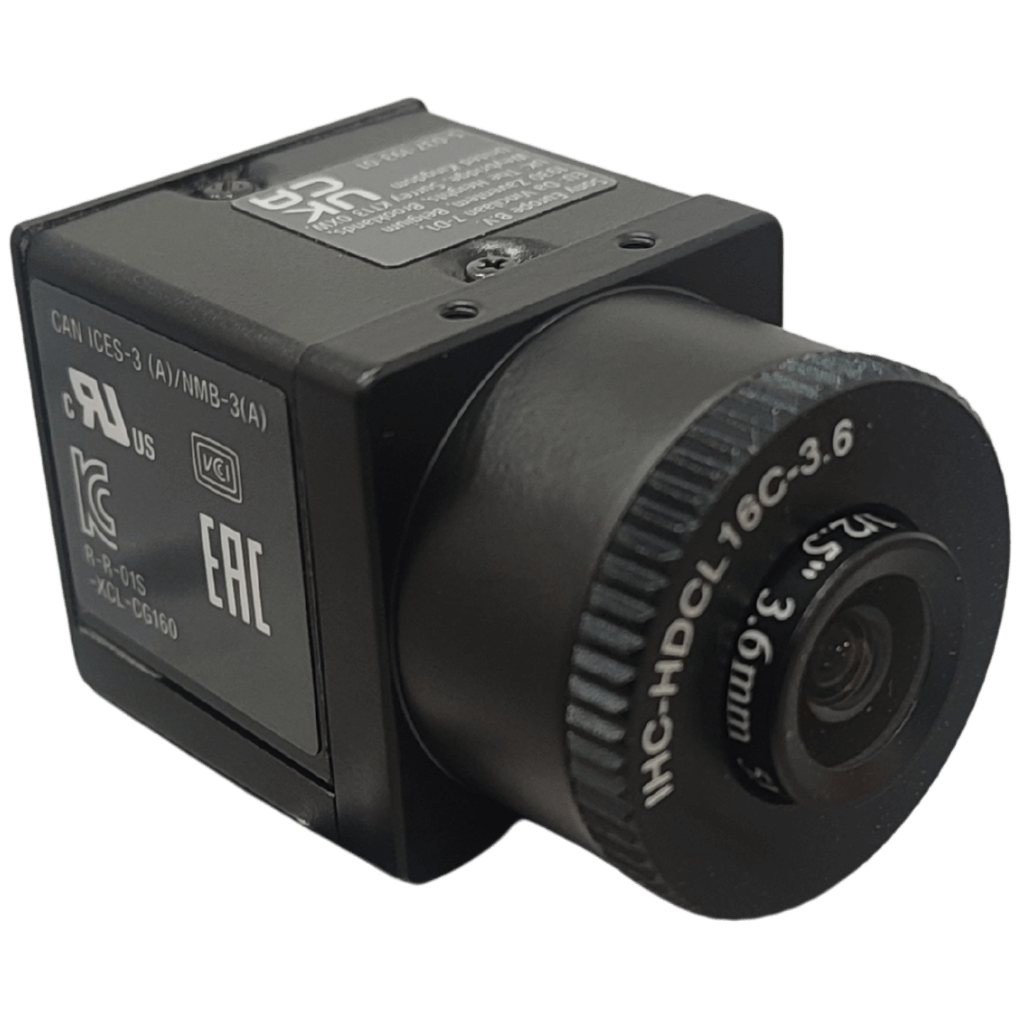

IHC-HDCL16C-3.6

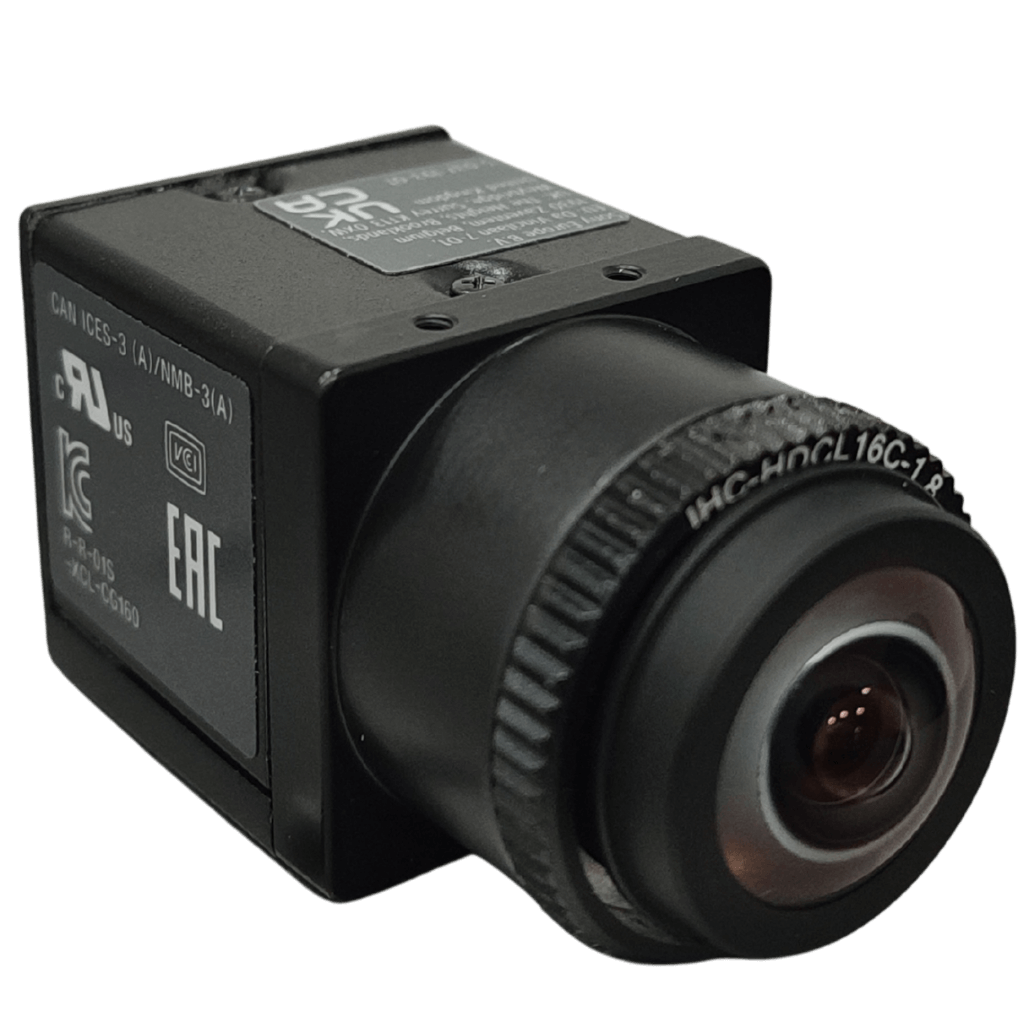

IHC-HDCL16C-1.8
▷About Harshcam
Since its inception in 2018, HarshCam has evolved from a pioneering concept at Iberoptics into a globally recognized brand for advanced vision systems. This growth is driven by continuous R&D, engineering excellence, and a focused commitment to manufacturing robust, mission-ready products.
From ruggedized day/night cameras to custom enclosures and precision interface boards, HarshCam solutions are designed for seamless integration with optical and sensor modules. They empower operators to detect, observe, and engage targets with enhanced accuracy and confidence—even under extreme mechanical and environmental stress.
Our Story
From our headquarters in Spain, HarshCam has supported defense customers worldwide with high-performance imaging solutions since 2018. Trusted by leading integrators and end users, our technologies are deployed in surveillance systems, weapon stations, reconnaissance platforms, and more.
As a division of Iberoptics, HarshCam combines technical know-how with operational insight to deliver turnkey and custom-built solutions—tailored to the realities of modern military and security operations.
Our Values
Innovation
We continually invest in the evolution of our technology portfolio to deliver cutting-edge vision systems that meet current and future mission needs.
Partnership
Our clients are more than customers—they are partners. We co-develop solutions to ensure operational relevance, integration ease, and long-term success.
Agility
In a fast-moving, technology-driven sector, we remain agile—adapting quickly to new requirements, industry standards, and client specifications.
Commitment
Our multidisciplinary team is united by a single goal: delivering best-in-class vision systems to professionals operating on the edge of performance.
Get in touch with HarshCam
If you’d like more information about our products or services, or if you need assistance from our team, we’re here to support you.
Please feel free to contact us using the details below.
Address
Camino de las Hormigueras, 124
Portal 4, Floor 2, Office 1
28031 Madrid, Spain
Phone Contacts
Carlos Martínez Bengoa: +34 686 188 226
Daniel Barrero Stadler: +34 646 757 485
Email Contacts
Carlos: cmartinez@iberoptics.com
Daniel: dbarrero@iberoptics.com
Documentation & Support
For international deployments, we provide all necessary documentation, including:
- Certificate of Origin, Spain*
- Customs Tariff Numbers
- Environmental Test Reports*
- Material Compliance Certificates
- Envirometal test*
*HarshCam and CamShell products
